Data Architecture: Tenants, Sites, Databases and URLs

This article describes the data architecture of a 12Port deployment. It explains where data is stored, how it is organized, and how 12Port provides access to it.

Tenants

Each 12Port deployment is a multi-tenant environment.

A simple deployment intended for a single project might include only one Asset tenant. Larger environments, such as managed service providers (MSPs) serving multiple clients or enterprises with several subsidiaries or departments, may deploy multiple Asset tenants. Additional tenants may also be used for staging, training, or experimental purposes.

Warning

Tenants do not share data, configuration, or security architecture.

Tenant Database

Each tenant stores data in its individual database.

This design ensures strict data separation between tenants, preventing any cross-tenant data access.

12Port includes an embedded database server (Apache Derby). A tenant may use this embedded database as its backend data store, in which case its data is maintained in a dedicated database managed locally on the 12Port host.

Alternatively, a tenant can use an external relational database provided by a third-party vendor. 12Port supports multiple commercial, free, and open-source database systems, including Oracle RDBMS, Microsoft SQL Server, MySQL, MariaDB, and PostgreSQL.

Note

Different tenants might use databases from different vendors.

Multi-Node Deployment

In any particular deployment a tenant might play one of the the following roles:

  • Standalone - An isolated Asset tenant.

  • High Availability Tenant - An active backup tenant in a high-availability deployment, sharing a database with a tenant in another deployment.

  • Disaster Recovery Tenant - A passive backup tenant receiving database replication from a tenant in another deployment.

  • Peer Tenant - A peer tenant for a tenant in another deployment providing access to resources in an isolated datacenter or increasing access and execution capabilities of another tenant.

Note

In a multi-node deployment, the set of tenants on the nodes do not need to match. When planning such deployments, consider the role of each tenant and deploy them where needed. A deployment might contain tenants of different roles sharing data with tenants of different deployments.

Note

The Base tenant is not replicated across deployments. Therefore, it is not recommended to use Base tenant users for Asset tenant activities. Instead, use users from Asset tenants or their integrated user directories. Asset tenant users and their associated security configurations are replicated to backup tenants as needed.

Tenant URL

Users access a tenant’s web console and web sessions through a tenant-specific URL. Each tenant presents a unique login page with configurable branding and its own integrated user directories.

Note

The structure of the tenant URL will be discussed later, after introducing the site hierarchy.

Base Tenant

Each deployment includes a Base Tenant, which is always deployed with the embedded database and accessible via the Base tenant URL:

https://12port.company.com/ztna/base/root

The Base Tenant manages all other tenants within the deployment.

It also stores master keys for data encryption used by Asset tenants. These master keys are themselves encrypted by a meta-master key, which is stored in each tenant’s database.

This architecture separates encrypted tenant data from the keys that encrypt it.

The Base Tenant does not store data itself (which is the purpose of Asset tenants), but it supports the same integrations as Asset tenants. For example, its user and group-based authorization can be integrated with Microsoft Active Directory, and it can enforce TOTP or other configured MFA methods.

Tenant Architecture Diagram

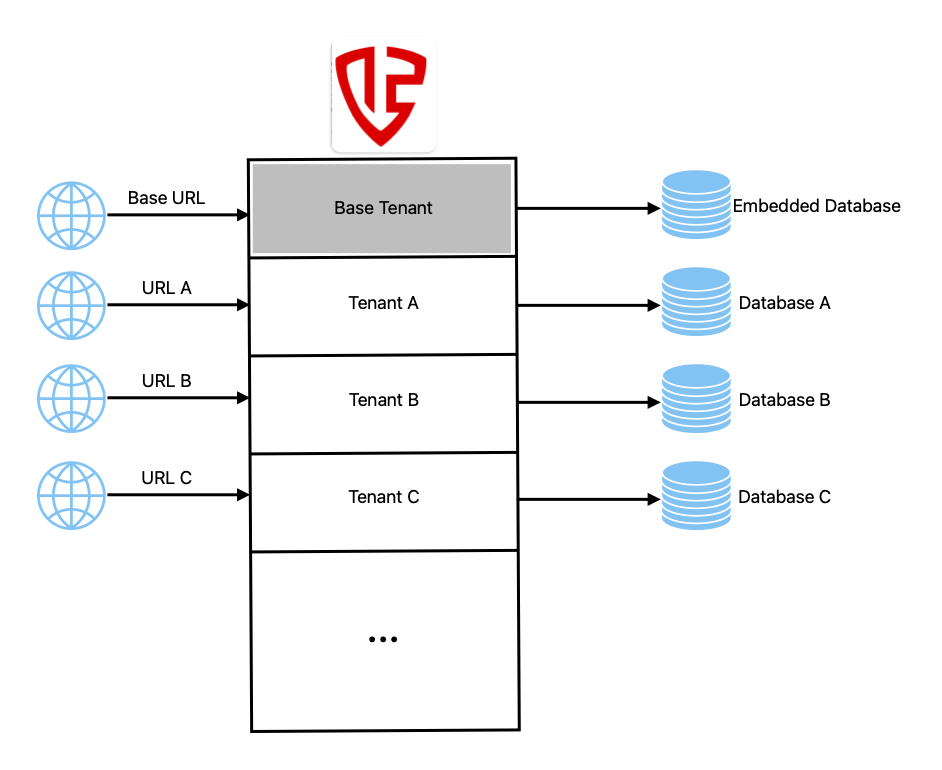

The following diagram illustrates a typical deployment with three Asset tenants; Tenant A, Tenant B, and Tenant C; along with the Base Tenant.

12Port Architecture - Tenants

Sites

Asset tenants organize their data in a hierarchy of sites.

The root site is the top-level site. Every tenant has at least one root site. A site may contain multiple sub-sites, and each sub-site can have its own sub-sites, forming a hierarchical structure. All sites within a tenant use the same database.

Site Configuration Inheritance

Site configuration is inherited from parent sites. A site can extend its inherited configuration with additional settings, and those changes are passed down to its own child sub-sites, which may further extend them.

Example

The root site might be integrated with Microsoft Active Directory and enforce TOTP MFA.

A sub-site could additionally integrate with YubiKey and enforce YubiKey MFA for specific users. This sub-site's YubiKey integration would not be available at the parent root site but would be on the sub-site and its children.

Example

Asset types are inherited to sub-sites. However, new asset types created in a sub-site are not available to its parent sites.

Site Data

Each site manages a unique set of assets organized in a container hierarchy. Relationships between assets (such as Membership or Reference Assets) cannot be established across sites.

Site URL

A site URL is constructed from the web application host, deployment context, tenant name, and site name. For example:

https://12port.company.com/ztna/tenant-name/site-name

Where:

  • https://12port.company.com is the WEB application host.
  • ztna is the fixed deployment context.
  • tenant-name is the tenant name.
  • site-name is the site name.

Note

The site URL does not reflect the site hierarchy or sub-site relationships. It includes only the site name, so each site name must be unique within a tenant.

Example

Each tenant has a root site with the URL: https://12port.company.com/ztna/tenant-name/root

Example

Base tenant URL provided earlier is: https://12port.company.com/ztna/base/root

Site Architecture Diagram

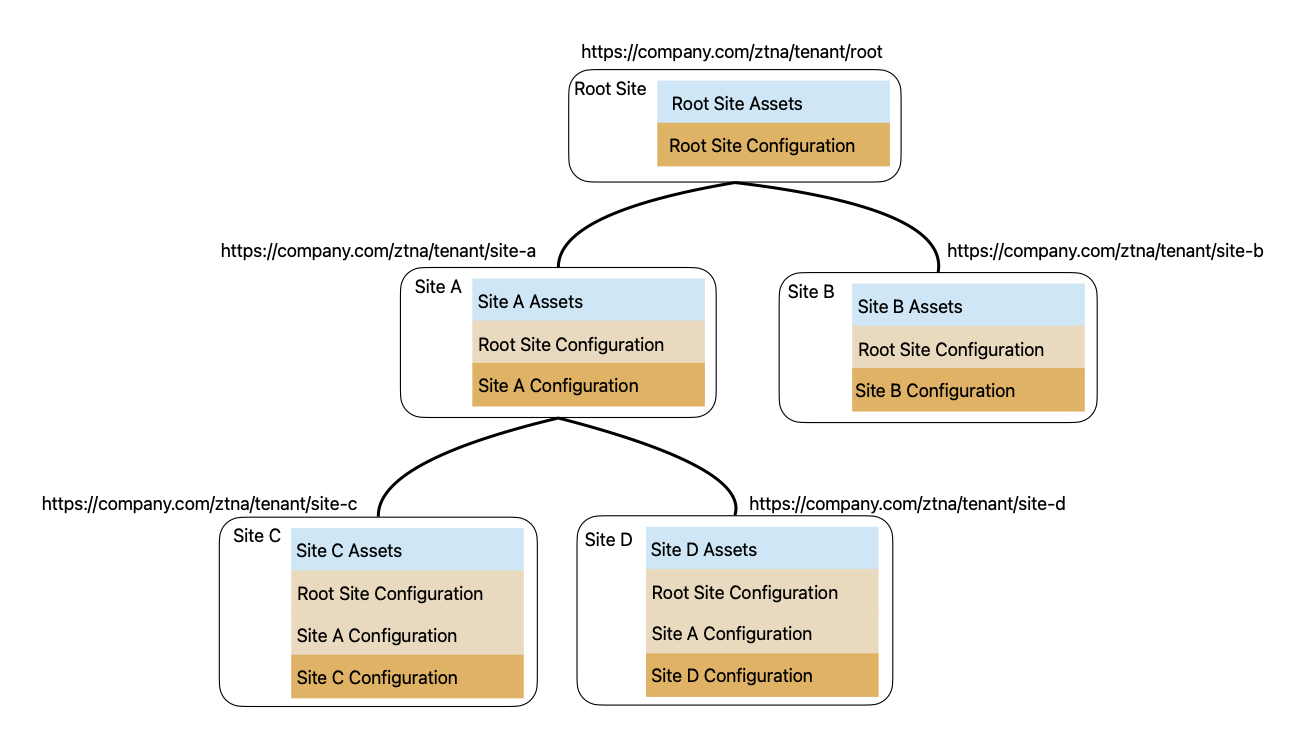

The following diagram shows an example site hierarchy within a sample tenant. Note the root site at the top of the hierarchy, the unique set of assets managed by each site, configuration inheritance down the site hierarchy, and the construction of site URLs.

12Port Architecture - Sites
