Login Page Form Branding
Each space's web portal login form supports custom branding options that are configurable on this management page.
Parameters
The following configuration options are available to Space Administrator or Configuration Manager users to customize the space's login form.

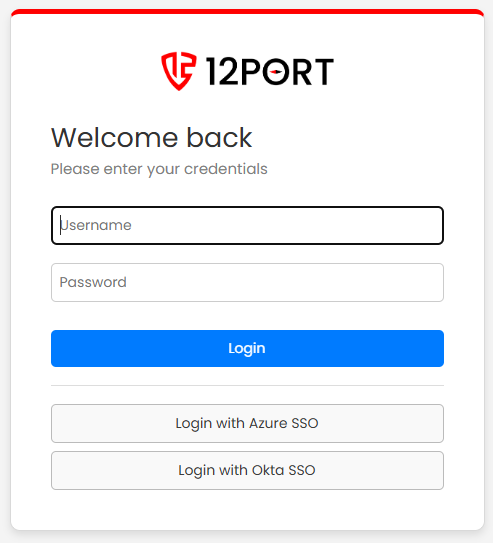

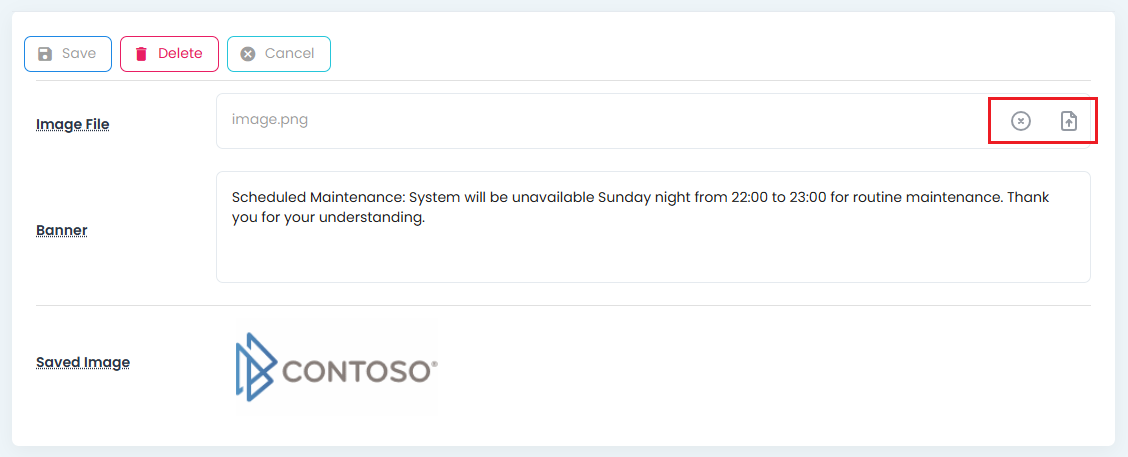

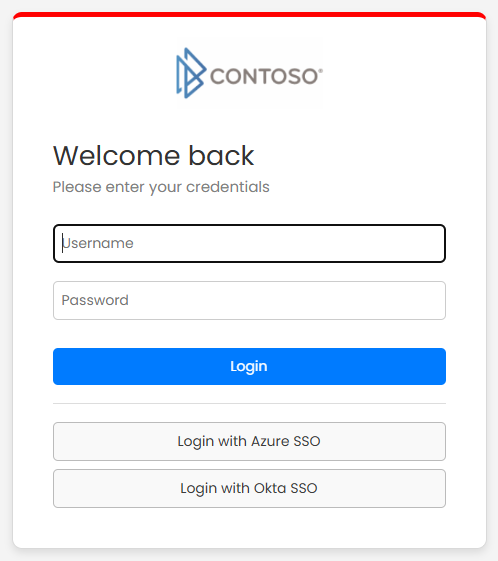

Image File The image file is the graphic that is displayed along the top of the Space's login form that replaces the default 12Port logo.
- To upload a custom image file, click the Upload button and select the desired image in the supported .jpg, .png or .svg file format.
- To remove a custom image file, click the Clear button.
Tip
For optimal display, use a horizontally oriented rectangular logo. Other aspect ratios are supported but may not render the form as cleanly. To ensure efficient loading, keep the file size under 1MB. Use a transparent background (e.g., PNG format) for best visual integration.
Banner Enter basic text in this parameter to display a highlighted message below the image file, on this Space's login form.
- To display the banner message, enter the basic text in this Banner parameter.
- To hide the banner message, remove the basic text from this Banner parameter.
Saved Image The uploaded and saved image file for this Space is shown here as a preview.
After the configurations have been completed, click the Save button.
Inheritance
By default, branding configuration is inherited from parent to child spaces. For example, if custom branding is applied to the /root space, all child or subspaces, will inherit this same branding on their login page form.
If unique custom branding should be applied to an child or subspace, overwritting this inheritance, navigate to this child space's Branding page and make any required changes in this location. When complete, use the Save button to save the changes. Alternatively, if you wish to restore the inherited branding from its parent, use the Delete button.
To remove all custom branding, use the Clear button for the Image File parameter, remove the text from the Banner parameter, and Save the changes. After this operation, the Space's login form will be restored to its original, default state.
Deletion
If you wish to remove all configurations for this Space, click the Delete button. After all the custom branding configuration is removed, the Space's login form will be restored to its default state.
